Set up CCM for AWS

Overview

Harness Cloud Cost Management (CCM) offers comprehensive solutions to manage and optimize the cloud costs of your Amazon Web Services (AWS) infrastructure. CCM provides visibility, governance, and optimization of AWS services such as EC2, S3, RDS, Lambda, and others. CCM provides recommendations to effectively right-size your cloud resources to match the workload demands and optimizes the auto-scaling groups (ASGs), and EKS clusters using intelligent cloud AutoStopping rules.

info

After enabling CCM, it takes about 24 hours for the data to be available for viewing and analysis.

Prerequisites

AWS Connector requirements

For CCM, AWS connectors are available only at the Account level in Harness.
If you have multiple AWS accounts, you may need to create multiple AWS connectors depending on desired functionality:
- Cost Visibility: You may need to create one or multiple AWS connectors depending on the availability of consolidated billing. Go to Cost and Usage Reports (CUR) for more information.
- Resource Inventory Management: You need to create an AWS connector for each account.
- Optimization by AutoStopping: You need to create an AWS connector for each account.

Required- Cost and Usage Reports (CUR)

Multiple Accounts with Consolidated Billing
Multiple Accounts
Single Account

If you have consolidated billing process enabled, then you need to create only a single CUR for the management account. This provides cost data for all member accounts in the organization.
For the Cost Visibility feature alone, you will only need a single AWS connector configured with the management account CUR.
In order to take advantage of other features such as Inventory Management and AutoStopping, you need to create a connector for each member account:
- If you are using the UI to create the additional connectors, configure all connectors with the same management account CUR.
- If you are using the API to create the additional connectors, you can omit billing information altogether.

Implementation Guide

Connect CCM to your AWS account

To enable CCM for your AWS services (such as EC2, S3, RDS, Lambda, and so on), you simply need to connect Harness to your AWS accounts.

Create a new AWS connector using one of the two options below:

From Account Settings
From Cloud Costs

Go to Account Settings > Connectors.
Select + New Connector.
Under Cloud Costs, select AWS.

Perform the following tasks in the AWS Connector wizard.

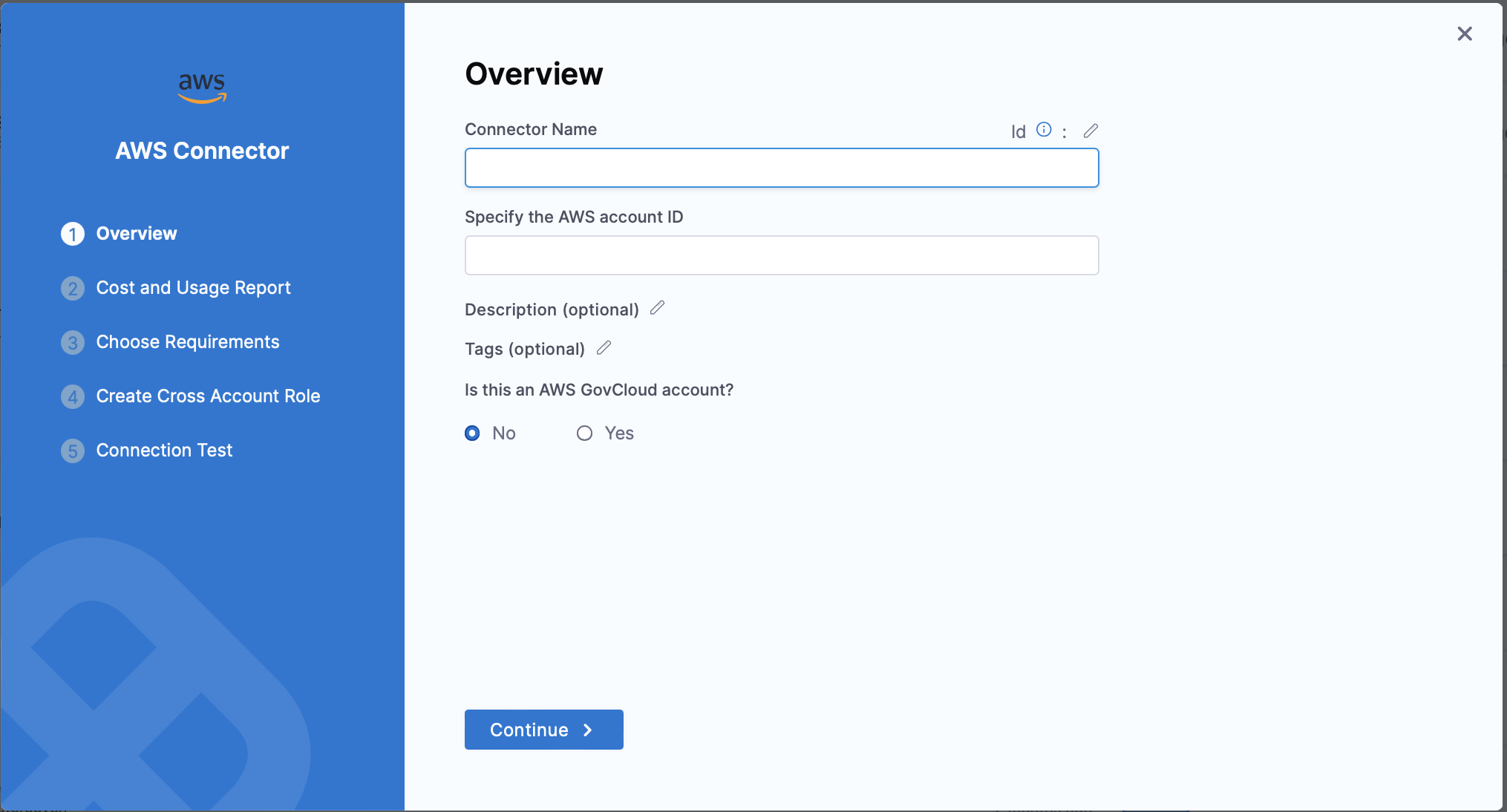

Step 1: Configure Connector Overview

Connector Details

Field	Description
Connector Name	Enter any name for the connector. This name will appear throughout the product to identify this AWS account.
Specify the AWS account ID	The Account ID of the AWS account to connect to. To find your AWS account ID, see Finding your AWS account ID.
Is this an AWS GovCloud account?	Select Yes if connecting to a GovCloud account.

Step 2: Set Up Cost and Usage Report

Launch the AWS console and perform the following steps:

Log into your AWS account if not already logged in.
Select Create Report.
In the Specify report details step, enter the following values, and then select Next.

Report Details

Field	Description
Report Name	Enter a name for the report. Make sure to copy this name, as you will need it to continue configuring the Harness connector in the steps below.
Include resource IDs	Make sure this option is selected.
Split cost allocation data	Make sure this option is unchecked.
Refresh automatically	Make sure this option is selected.

In the Set delivery options step, enter the following values, and then select Next.

Field	Description
Configure S3 Bucket	Select an existing bucket or create a new one. Make sure to copy this name, as you will need it to continue configuring the Harness connector in the steps below.
S3 path prefix - required	Enter any path prefix. Harness will automatically scan and find this prefix.
Report data time granularity	Select Hourly.
Report versioning	Select Overwrite existing report.
Amazon Athena	Make sure this option is unchecked.
Amazon Redshift	Make sure this option is unchecked.
Amazon QuickSight	Make sure this option is unchecked.
Compression type	Select GZIP.

In the Review and create step, select Create Report.
In the Harness connector dialog, enter the following values, and then select Continue.

Field	Description
Cost and Usage Report Name	Enter the report name you copied earlier.
Cost and Usage S3 Bucket Name	Enter the bucket name you specified earlier.

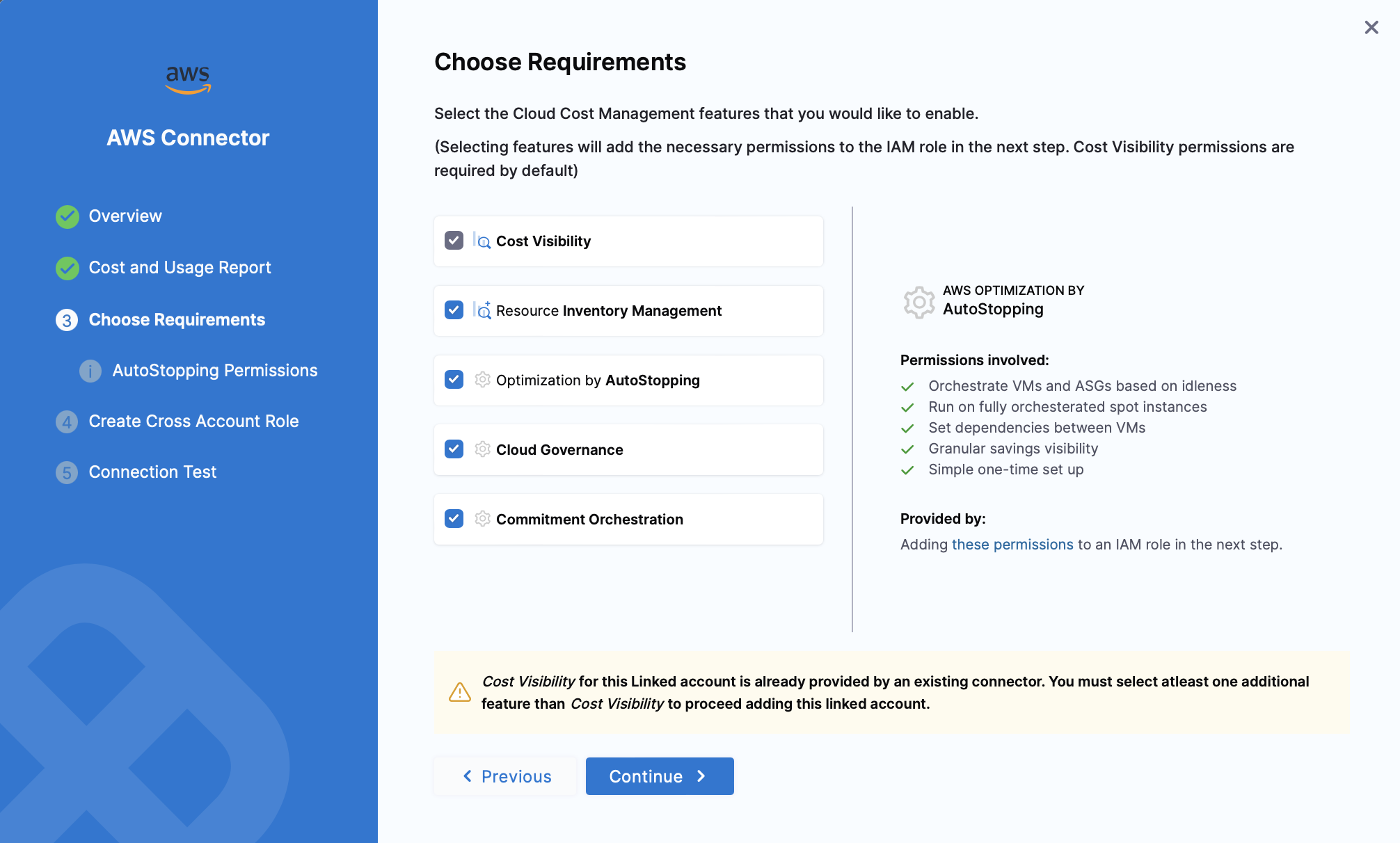

Step 3: Choose Requirements

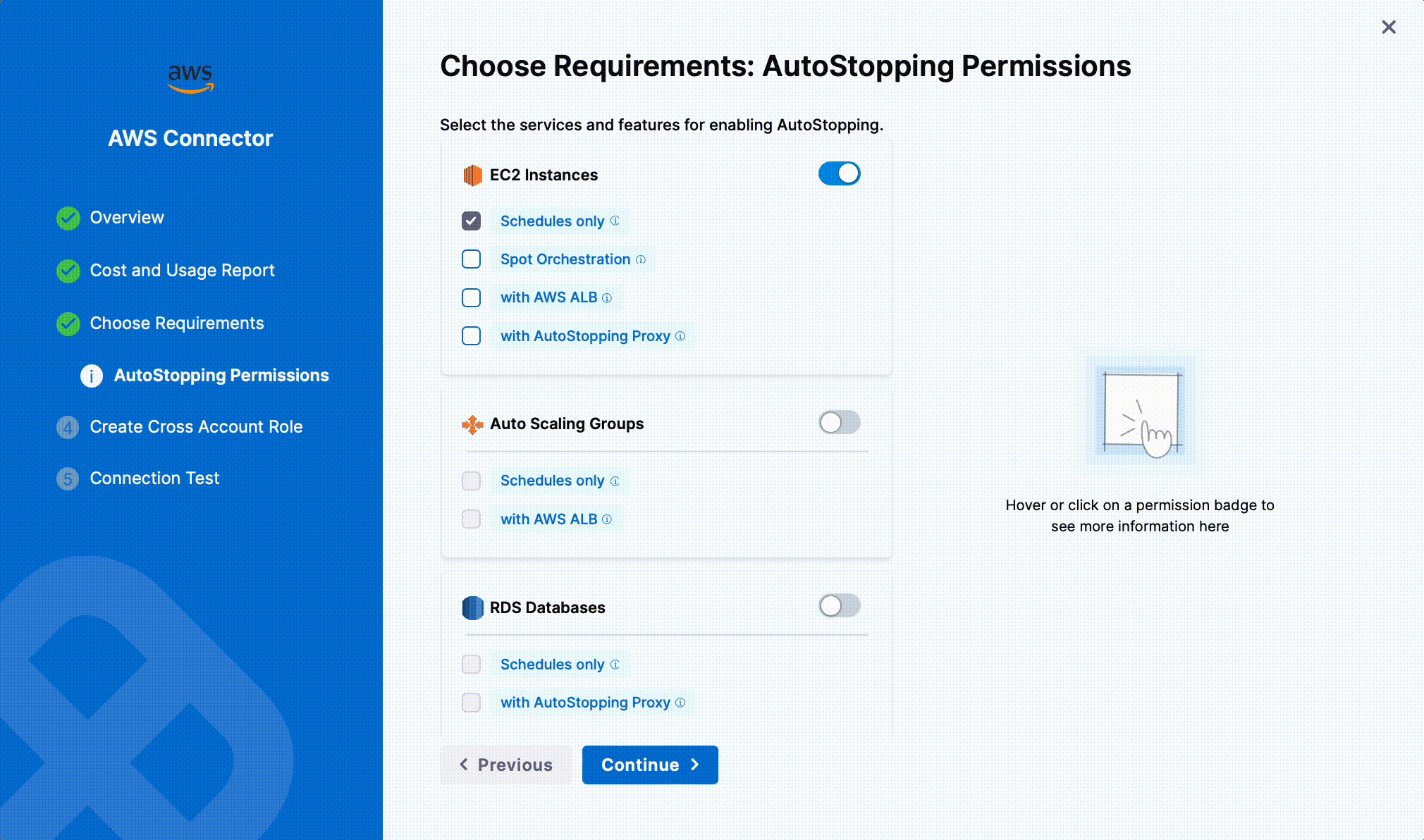

Select the Cloud Cost Management features that you would like to enable, and then select Continue.

☆ NOTE — Selecting features will add the necessary permissions to the IAM role in the next step. Cost Visibility permissions are required by default.

Details about each feature are provided below:

Feature	Status	Permissions Involved	Permissions
Cost Visibility	Required	• AWS costs by services, accounts, etc. • Cost perspective by various constructs • Cost anomaly detection • Budgets and forecasts • Email and Slack alerts • Savings plans coverage & utilization details • RI coverage & utilization details	Default from the Cost and Usage Report created in the previous step. This cannot be deselected. Please see required permissions
Resource Inventory Management	Optional	• Breakdown by ECS cluster cost, Service, Task, and Launch Type (EC2, Fargate) • Insight into EC2 instances and their utilization • Access to AWS EC2 Inventory Cost, EBS Volumes and Snapshots inventory dashboards	Adding these permissions to an IAM role in the next step.
Optimization by AutoStopping	Optional	• Orchestrate VMs and ASGs based on idleness • Run on fully orchestrated spot instances • Set dependencies between VMs • Granular savings visibility • Simple one-time setup	Adding these permissions to an IAM role in the next step. Also, if this option is selected, you can set up Granular AutoStopping Permissions in the next step. Please see details here.
Cloud Governance	Optional	• Asset Management (EC2, EBS, RDS, S3) • Automated Actions	Adding these permissions to an IAM role in the next step.
Commitment Orchestration	Optional	• Purchase Reserved Instances offering • Get Reserved Instances Exchange Quote • Describe Instance type offerings • Accept RI exchange quote • Describe RI modifications • Modify Reserved Instances	Adding these permissions to an IAM role in the next step.

Step 4: Create Cross Account Role

Harness uses the secure cross-account role to access your AWS account. The role includes a restricted policy based on the features selected above.

In Create Cross Account Role, select Launch Template on AWS console.

Perform the following steps in the AWS Console.

In Quick create stack, in Capabilities, select the acknowledgment, and then select Create stack.

☆ NOTE - The values on this page are based on your previous selections. Do not modify any values before creating the stack.
In the stack's page, go to the Outputs tab and copy the Value of CrossAccountRoleArn Key.
In the Harness connector dialog, enter the following values, and then select Save and Continue.

Field	Description
Cross Account Role ARN	Enter the value that you copied in step 3.
External ID	Do not modify. If you intend to create multiple AWS connectors via API, be sure to copy this value as you will need to reference it later.

Step 5: Connection Test

The connection is validated, and verified in this step. After successful validation, select Finish.

important

Creating a new CUR (Cost and Usage Report) in AWS typically takes 6-8 hours. During this period, you might encounter an error message stating that Harness CCM is unable to find a CUR file.

Advanced Configuration

Create Connectors for multiple AWS accounts

Harness CCM also provides the ability to create connectors via API using a StackSet configured at the management account. It involves the following steps:

Create a Service Account and API Key in Harness
Create a StackSet in AWS
Create an AWS Connector via API (performed once for each AWS account)

☆ NOTE — You should manually create a connector via the UI for the management account before using the API method described here to create connectors for the member accounts.

Step 1: Create a Service Account
Step 2: Create a StackSet in AWS
Step 3: Create AWS Connector via API

Create a Service Account and API key in Harness

At the Account level, create a service account with the Admin role for All Account Level Resources or All Resources Including Child Scopes.
Create a service account token. Save the API Key, which will be used when creating AWS connectors via the API below.

Create a StackSet in AWS

Perform the following steps to create a StackSet in AWS:

Select the following link to start creating the StackSet:
https://console.aws.amazon.com/cloudformation/home?region=us-east-1#/stacksets/create
In the Choose a template step, enter the following values, and then select Next.

Field	Description
Permissions	Optional, configure if necessary based on your AWS policies.
Prerequisite - Prepare template	Select Template is ready.
Specify template	Select Amazon S3 URL.
Amazon S3 URL	Enter `https://continuous-efficiency-prod.s3.us-east-2.amazonaws.com/setup/ngv1/HarnessAWSTemplate.yaml`

In the Specify StackSet details step, enter the following values, and then select Next.

Field	Description
StackSet name	Enter any name. For example, `harness-ce-iam-stackset` .
BillingEnabled	Select false.
BucketName	Leave empty.
EventsEnabled	Select true.
ExternalId	The External ID value copied in step 4 of Create Cross Account Role.
GovernanceEnabled	Select true to enable Governance. Otherwise, select false.
LambdaExecutionRoleName	Leave as is unless your AWS policies required a different naming convention.
OptimizationEnabled	Select true to enable AutoStopping. Otherwise, select false.
PrincipalBilling	Do not modify.
RoleName	Leave as is unless your AWS policies required a different naming convention.

In the Configure StackSet options step, enter the following values and select Next

Field	Description
Managed execution	Select Active.

In the Set deployment options step, enter the following values, and then select Next.

Field	Description
Add stacks to StackSet	Select Deploy new stacks.
Deployment locations	Configure the accounts or organization units that you want to deploy to.
Specify regions	Configure the regions that you want to deploy to.
Region Concurrency	Select Sequential.

In the Review step, select the acknowledgment, and then select Submit.

Create an AWS Connector via API

Use the Harness API's Create a Connector endpoint to create an AWS connector for each member account. Below is a sample cURL command to create an AWS connector. Replace the following placeholders with your values:

Placeholder	Description
API TOKEN	The API Key created in the Create a Service Account and API Key in Harness section.
CONNECTOR NAME	Enter any name. This will be visible in the UI, perspectives, dashboards, etc.
CONNECTOR ID	Enter a unique ID for the connector. The ID must meet the Entity Identifier Reference specification.
CROSS ACCOUNT ROLE ARN	The ARN value copied in step 3 of Create Cross Account Role.
EXTERNAL ID	The External ID value copied in step 4 of Create Cross Account Role.
AWS ACCOUNT ID	The ID of the AWS member account.
FEATURES	A comma separated list of features to enable. Enter `"VISIBILITY", "OPTIMIZATION", "GOVERNANCE"` removing any features that you do not want to enable.

curl -i -X POST 'https://app.harness.io/gateway/ng/api/connectors' \
  -H 'Content-Type: application/json' \
  -H 'x-api-key: <API TOKEN>' \
  -d '{
  "connector":{
    "name":"<CONNECTOR NAME>",
    "identifier":"<CONNECTOR ID>",
    "type":"CEAws",
    "spec":{
      "crossAccountAccess":{
        "crossAccountRoleArn":"<CROSS ACCOUNT ROLE ARN>",
        "externalId":"<EXTERNAL ID>"
      },
      "awsAccountId":"<AWS ACCOUNT ID>",
      "curAttributes":{
        "reportName":"",
        "s3BucketName":""
      },
      "featuresEnabled":[
        <FEATURES>
      ]
    }
  }
}'

Enable EC2 recommendations

note

If you are an existing customer, you need to:

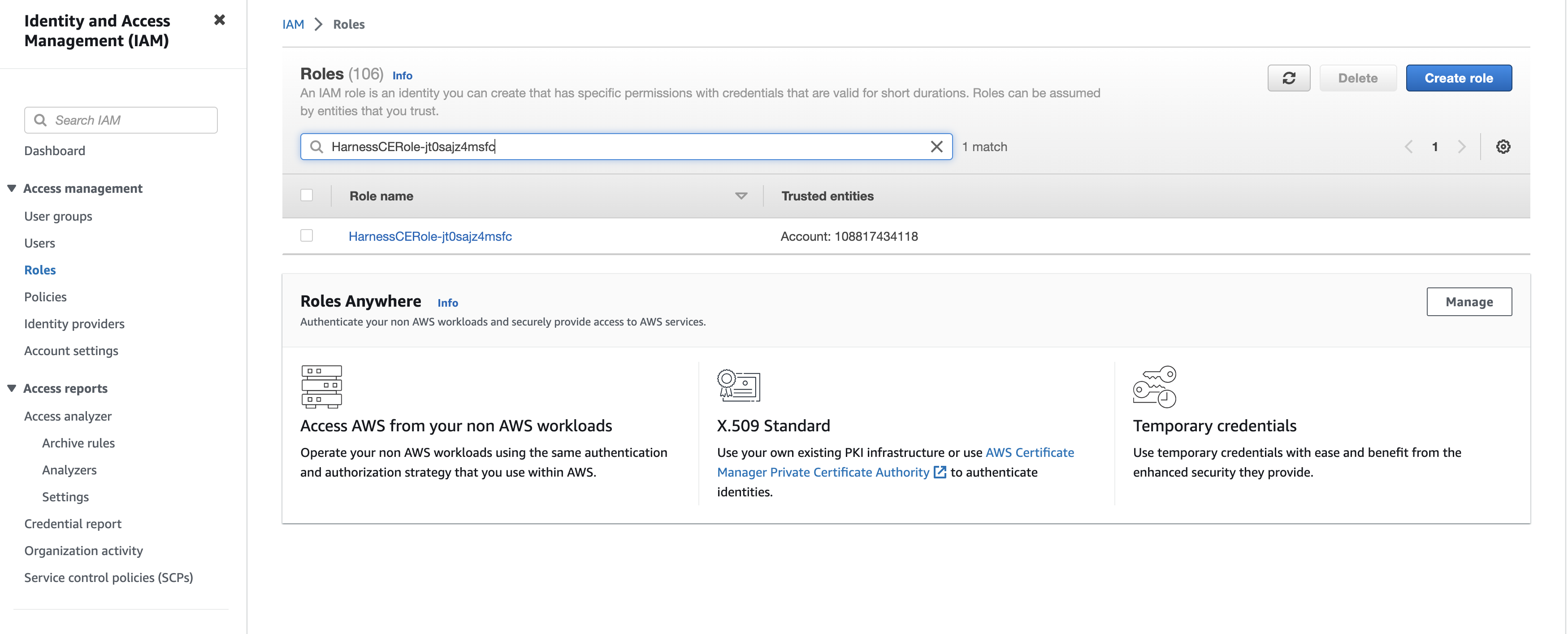

Edit the IAM role used by the Harness AWS Connector corresponding to the AWS account.

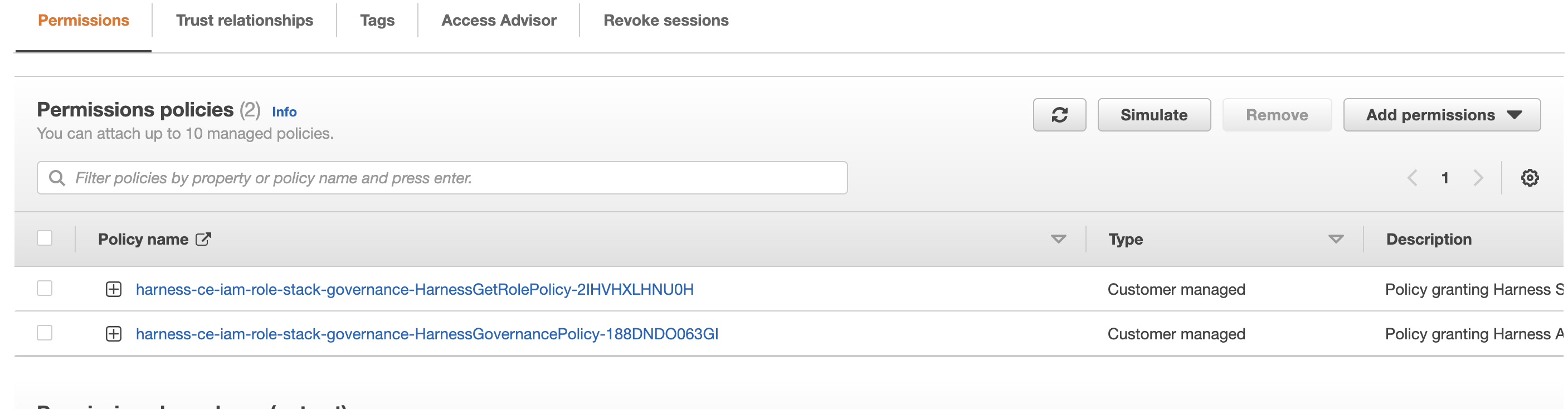

In the IAM role, add the ce:GetRightsizingRecommendation permission to the HarnessEventsMonitoringPolicy.

Once you have the ce:GetRightsizingRecommendation permission added to the HarnessEventsMonitoringPolicy in the IAM role, perform the following tasks on your AWS console to enable recommendations.

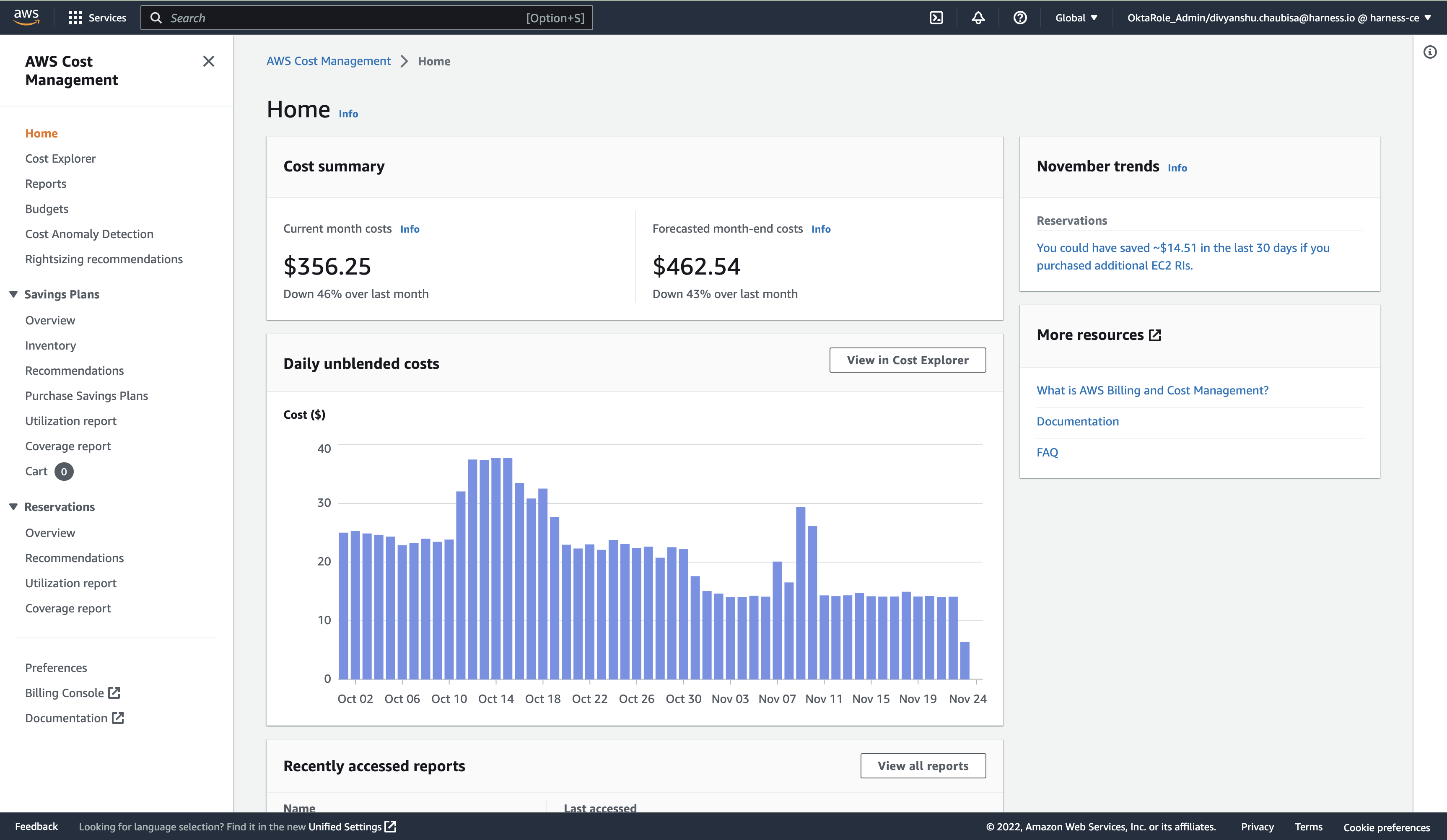

On your AWS console, go to the Cost Explorer service.

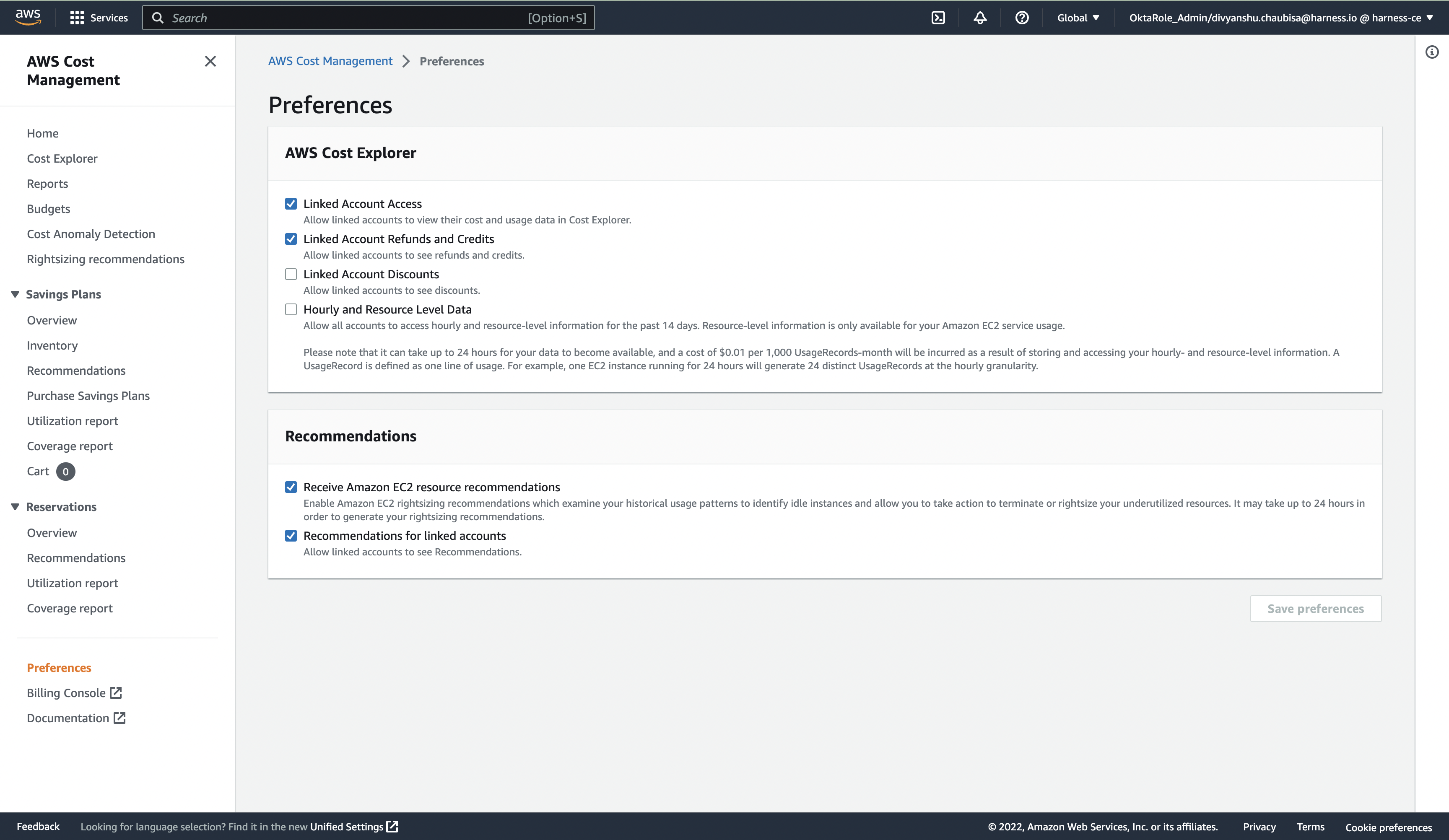

Click Preferences on the left pane.
Enable the following recommendations:

Receive Amazon EC2 resource recommendations
Recommendations for linked accounts

Verify that you have enabled these recommendations correctly.

Open AWS CloudShell and run the following command:

  aws ce get-rightsizing-recommendation --service AmazonEC2

If the recommendations are not enabled, the following error message is displayed:

"An error occurred (AccessDeniedException) when calling the GetRightsizingRecommendation operation: Rightsizing EC2 recommendation is an opt-in only feature. You can enable this feature from the PAYER account’s Cost Explorer Preferences page. Normally it may take up to 24 hours in order to generate your rightsizing recommendations."

You must install the Amazon CloudWatch agent on your EC2 instance to enable memory metrics.

Reference Information

AWS access permissions

CCM requires the following permissions which are automatically created via a StackSet based on the features you select during configuration.

☆ NOTE — If you don't have access to create a cost and usage report or run a CloudFormation template, contact your IT or security teams to provide the required permissions.

Individual Feature Permissions

This section details the specific AWS permissions required for each CCM feature:

Cost Visibility Permissions
Resource Inventory Management Permissions
RDS Instance Visibility Permissions
AutoStopping Rules Permissions
Cloud Asset Governance Permissions
Commitment Orchestrator Permissions

1. Cost Visibility Permissions

The Cost Visibility feature provides insights into AWS costs by services, accounts, and other dimensions. It enables root cost analysis, anomaly detection, budgeting, and notifications.

Required Permissions

The cost visibility policy grants the following permissions:

List CUR reports and visibility into the organization's Structure
Get objects from the S3 bucket configured in the CUR
Put objects into the Harness S3 bucket

Click to view Cost Visibility Policy

  HarnessBillingMonitoringPolicy:
    "Type": "AWS::IAM::ManagedPolicy"
    "Condition": "CreatingHarnessBillingMonitoringPolicy"
    "Properties":
      "Description": "Policy granting Harness Access to Collect Billing Data"
      "PolicyDocument":
        "Version": "2012-10-17"
        "Statement":
          - "Effect": "Allow"
            "Action":
              - "s3:GetBucketLocation"
              - "s3:ListBucket"
              - "s3:GetObject"
            Resource:
              - !Join
                - ''
                - - 'arn:aws:s3:::'
                  - !Ref BucketName
              - !Join
                - /
                - - !Join
                    - ''
                    - - "arn:aws:s3:::"
                      - !Ref BucketName
                  - '*'
          - "Effect": "Allow"
            "Action":
              - "s3:ListBucket"
              - "s3:PutObject"
              - "s3:PutObjectAcl"
            "Resource":
              - "arn:aws:s3:::ce-customer-billing-data-prod*"
              - "arn:aws:s3:::ce-customer-billing-data-prod*/*"
          - "Effect": "Allow"
            "Action":
              - "cur:DescribeReportDefinitions"
              - "organizations:Describe*"
              - "organizations:List*"
            "Resource": "*"
      "Roles":
        - "!Ref HarnessCloudFormationRole"

If the cur:DescribeReportDefinitions, organizations:Describe, and organizations:List* permissions are too wide, you can modify these to the following:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "organizations:ListAccounts",
                "organizations:ListTagsForResource"
            ],
            "Resource": "*"
        }
    ]
}

organizations:ListAccounts: fetches a list of all the accounts present in the organization, and also fetches the accountID to Account Name mapping.
organizations:ListTagsForResource: fetches the AWS Account level tags. Harness supports account tags within CCM that can be used for reporting and analysis.

2. Resource Inventory Management Permissions

The Resource Inventory Management feature provides visibility into your AWS resources including EC2 instances, EBS volumes, and ECS clusters. This feature helps finance teams understand resource utilization across the organization.

Required Permissions

The inventory management policy performs the following actions:

ECS Visibility - For Granular Cluster Cost Breakdown
EC2, EBS, RDS Visibility - Inventory Management

HarnessEventsMonitoringPolicy:
  "Type": "AWS::IAM::ManagedPolicy"
  "Condition": "CreateHarnessEventsMonitoringPolicy"
  "Properties":
    "Description": "Policy granting Harness Access to Enable Event Collection"
    "PolicyDocument":
      "Version": "2012-10-17"
      "Statement":
        - "Effect": "Allow"
          "Action":
              - "ecs:ListClusters*"
              - "ecs:DescribeClusters"
              - "ecs:ListServices"
              - "ecs:DescribeServices"
              - "ecs:DescribeContainerInstances"
              - "ecs:ListTasks"
              - "ecs:ListContainerInstances"
              - "ecs:DescribeTasks"
              - "ec2:DescribeInstances*"
              - "ec2:DescribeRegions"
              - "cloudwatch:GetMetricData"
              - "ec2:DescribeVolumes"
              - "ec2:DescribeSnapshots"
              - "rds:DescribeDBSnapshots"
              - "rds:DescribeDBInstances"
              - "rds:DescribeDBClusters"
              - "rds:DescribeDBSnapshotAttributes"
          "Resource": "*"
    "Roles":
      - "!Ref HarnessCloudFormationRole"

3. RDS Instance Visibility Permissions

This feature provides detailed visibility into your RDS instances and related resources, allowing for better cost management and optimization of database resources.

Feature Capabilities

Detailed breakdown of RDS instance costs and utilization
Insight into database clusters and snapshots
Integration with EC2, EBS volumes, and ECS cost data

Dashboard Access

This feature enables access to several dashboards:

Breakdown by ECS cluster cost, Service, Task, and Launch Type (EC2, Fargate)
Insight into EC2 instances and their utilization
Access to AWS EC2 Inventory Cost and EBS Volumes and Snapshots inventory dashboards

For more information, see:

4. AutoStopping Rules Permissions

The AutoStopping feature allows you to enable Intelligent Cloud AutoStopping for your AWS instances and auto-scaling groups, helping to reduce costs by automatically stopping idle resources.

Feature Capabilities

Orchestrate VMs and ASGs based on idleness
Run workloads on fully orchestrated spot instances
Gain granular savings visibility

Required Permissions

The AutoStopping policy performs the following actions:

Create an IAM role for optimization
Permissions for creating and managing AutoStopping Rules

The following template illustrates the relevant permissions needed for AutoStopping to work seamlessly.

 HarnessOptimizationLambdaExecutionRole:
    Type: "AWS::IAM::Role"
    Condition: CreateHarnessOptimisationPolicy
    Properties:
      RoleName: !Ref LambdaExecutionRoleName
      AssumeRolePolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Principal:
              Service: "lambda.amazonaws.com"
            Action: 'sts:AssumeRole'
      Path: /ce-optimization-service-role/

HarnessOptimsationLambdaPolicy:
    Type: 'AWS::IAM::ManagedPolicy'
    Condition: CreateHarnessOptimisationPolicy
    Properties:
      Description: Policy granting Harness Access to Enable Cost Optimisation
      PolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Action:
              - 'ec2:CreateNetworkInterface'
              - 'ec2:CreateNetworkInsightsPath'
              - 'ec2:CreateNetworkInterfacePermission'
              - 'ec2:CreateNetworkAcl'
              - 'ec2:*'
              - 'ec2:CreateNetworkAclEntry'
              - 'logs:CreateLogGroup'
              - 'logs:CreateLogStream'
              - 'logs:PutLogEvents'
            Resource: "*"
      Roles:
        - !Ref HarnessOptimizationLambdaExecutionRole

  HarnessOptimisationPolicy:
    Type: 'AWS::IAM::ManagedPolicy'
    Condition: CreateHarnessOptimisationPolicy
    Properties:
      Description: Policy granting Harness Access to Enable Cost Optimisation
      PolicyDocument:
        Version: 2012-10-17
        Statement:
              - Effect: Allow
                Action:
                  - elasticloadbalancing:*
                  - ec2:StopInstances
                  - autoscaling:*
                  - ec2:Describe*
                  - iam:CreateServiceLinkedRole
                  - iam:ListInstanceProfiles
                  - iam:ListInstanceProfilesForRole
                  - iam:AddRoleToInstanceProfile
                  - iam:PassRole
                  - ec2:StartInstances
                  - ec2:*
                  - iam:GetUser
                  - ec2:ModifyInstanceAttribute
                  - iam:ListRoles
                  - acm:ListCertificates
                  - lambda:*
                  - cloudwatch:ListMetrics
                  - cloudwatch:GetMetricData
                  - route53:GetHostedZone
                  - route53:ListHostedZones
                  - route53:ListHostedZonesByName
                  - route53:ChangeResourceRecordSets
                  - route53:ListResourceRecordSets
                  - route53:GetHealthCheck
                  - route53:GetHealthCheckStatus
                  - cloudwatch:GetMetricStatistics
                  - ecs:ListClusters
                  - ecs:ListContainerInstances
                  - ecs:ListServices
                  - ecs:ListTaskDefinitions
                  - ecs:ListTasks
                  - ecs:DescribeCapacityProviders
                  - ecs:DescribeClusters
                  - ecs:DescribeContainerInstances
                  - ecs:DescribeServices
                  - ecs:DescribeTaskDefinition
                  - ecs:DescribeTasks
                  - ecs:DescribeTaskSets
                  - ecs:RunTask
                  - ecs:StopTask
                  - ecs:StartTask
                  - ecs:UpdateService
                  - rds:DescribeDBClusters
                  - rds:DescribeDBInstances
                  - rds:ListTagsForResource
                  - rds:AddTagsToResource
                  - rds:RemoveTagsFromResource
                  - rds:ModifyDBInstance
                  - rds:StartDBCluster
                  - rds:StartDBInstance
                  - rds:StopDBCluster
                  - rds:StopDBInstance
                  - s3:ListBucket
                  - s3:GetObject
                  - s3:ListAllMyBuckets
                  - s3:GetBucketLocation
                  - secretsmanager:GetSecretValue
                Resource: "*"
      Roles:
        - !Ref HarnessCloudFormationRole

Granular Permissions for AutoStopping

On this screen, you can select specific features and services for AutoStopping:

EC2 Instances

Schedules only

# List VMs in Harness UI for rule creation and in rule details page
ec2:DescribeInstances

# Create tags on the EC2 while creating an AutoStopping rule
ec2:CreateTags

# Start EC2
ec2:StartInstances

# Stop EC2
ec2:StopInstances

Spot Orchestration

# Creating Snapshot for Spot VM
ec2:DescribeVolumes
ec2:CreateImage
ec2:DescribeImages

# Spot VMs are terminated during cool down instead of stopping
ec2:TerminateInstances

# Delete snapshot after deleting AutoStopping rule
ec2:DeregisterImage
ec2:DeleteSnapshot

# Create spot VM during warm up
ec2:RequestSpotInstances
ec2:DescribeSpotInstanceRequests
ec2:DescribeAddresses

# Create on demand instance in case spot VM creation fails
ec2:RunInstances

with AWS ALB

# Describe certificates in create ALB flow
acm:ListCertificates

# List VPCs in create ALB flow
ec2:DescribeVpcs

# List security groups in create ALB flow
ec2:DescribeSecurityGroups

# Describe load balancers in create ALB flow
elasticloadbalancing:DescribeLoadBalancers

# Lambda requires a role to execute and push the logs to cloud watch
iam:ListRoles

# List subnets for the selected VPC while creating ALB
ec2:DescribeSubnets

# Create ALB (only if customer wants to create ALB from Harness)
elasticloadbalancing:CreateLoadBalancer

# Attach security groups to ALB
elasticloadbalancing:SetSecurityGroups

# Describe target group for lambda and EC2 target groups
elasticloadbalancing:DescribeTargetGroups

# Create lambda target group and health check target group
elasticloadbalancing:CreateTargetGroup

# Add tags to Harness created target groups
elasticloadbalancing:AddTags

# Get lambda function details
lambda:GetFunction

# Create lambda function
lambda:CreateFunction

# Pass role to lambda
iam:PassRole

# Allow lambda Target Group to execute the lambda
lambda:AddPermission

# Add lambda to target group
elasticloadbalancing:RegisterTargets

# Delete lambda while deleting the load balancer
lambda:DeleteFunction

# Delete load balancer (only if triggered from Harness UI)
elasticloadbalancing:DeleteLoadBalancer

# Get target group health check details
elasticloadbalancing:DescribeTargetHealth

# Get listeners of ALB
elasticloadbalancing:DescribeListeners

# Create new listener in ALB if doesn't exist
elasticloadbalancing:CreateListener

# Check existing rules and modify priority if required
elasticloadbalancing:DescribeRules

# Create ALB rule
elasticloadbalancing:CreateRule

# Get tags of rules
elasticloadbalancing:DescribeTags

# Delete target groups
elasticloadbalancing:DeleteTargetGroup

# Delete ALB rule while editing/deleting AutoStopping rules
elasticloadbalancing:DeleteRule

# Modify existing rules priorities
elasticloadbalancing:SetRulePriorities

# Modify target group
elasticloadbalancing:ModifyTargetGroup

# Modify ALB rule
elasticloadbalancing:ModifyRule

# Read cloud watch metrics for traffic detection
cloudwatch:GetMetricStatistics

# Read access log from S3 (only for custom exclusion)
s3:ListBucket
s3:GetObject
s3:ListAllMyBuckets
s3:GetBucketLocation

# Get access logs details from ALB (only for custom exclusion)
elasticloadbalancing:DescribeLoadBalancerAttributes

# Push logs while running the lambda
logs:CreateLogGroup
logs:CreateLogStream
logs:PutLogEvents

with AutoStopping Proxy

//List machine types available for Proxy
ec2:DescribeInstanceTypeOfferings

//List key pairs for Proxy
ec2:DescribeKeyPairs

//Create Proxy VM
ec2:RunInstances

//Permission to read TLS certificate and secret. Needed only if TLS is used.
secretsmanager:GetSecretValue

//Allocate static IP
ec2:AllocateAddress

//List VPCs in create proxy flow
ec2:DescribeVpcs

//List security groups in create proxy flow
ec2:DescribeSecurityGroups

//List subnets for the selected VPC while creating ALB.
ec2:DescribeSubnets

//Delete the Proxy VM while deleting proxy

//Scope of this permission can be reduced to only proxy VMs.
ec2:TerminateInstances

//Describe the image for proxy
ec2:DescribeImages

//Associating address with VM
ec2:AssociateAddress

//Disassociate address while deleting proxy
ec2:DisassociateAddress

//Release address while deleting proxy
ec2:ReleaseAddress

//Modify security group of proxy VM if needed
ec2:ModifyInstanceAttribute

Auto Scaling Groups

Schedules Only

//List ASG
autoscaling:DescribeAutoScalingGroups

//Set the desired capacity of ASG during warm up and cool down operations
autoscaling:UpdateAutoScalingGroup

//List ASG Policies
autoscaling:DescribePolicies

//Suspend ASG policies during cool down
autoscaling:SuspendProcesses

//Resume ASG policies during warm up
autoscaling:ResumeProcesses

with AWS ALB

//Describe certificates in create ALB flow
acm:ListCertificates

//List VPCs in create ALB flow
ec2:DescribeVpcs

//List security groups in create ALB flow
ec2:DescribeSecurityGroups

//Describe load balancers in create ALB flow
elasticloadbalancing:DescribeLoadBalancers

//Lambda requires a role to execute and push the logs to cloud watch. We have a separate role for that. iam:ListRoles is used in code to list roles and identify the role created for lambda.
iam:ListRoles

//List subnets for the selected VPC while creating ALB.
ec2:DescribeSubnets

//Create ALB. Needed only if customer wants to create ALB from Harness
elasticloadbalancing:CreateLoadBalancer

//Attach security groups to ALB. Needed only if customer wants to create ALB from Harness.
elasticloadbalancing:SetSecurityGroups

//Describe target group. This is used to get details of lambda target group and EC2 target group
elasticloadbalancing:DescribeTargetGroups

//Create lambda target group and health check target group
elasticloadbalancing:CreateTargetGroup

//Add tags to Harness created target groups
elasticloadbalancing:AddTags

//Get lambda function details
lambda:GetFunction

//Create lambda function
lambda:CreateFunction

//We specify the lambda role when we try to create lambda. Create lambda with role in request will succeed only if this permission is present
iam:PassRole

//This is needed to allow the lambda Target Group to execute the lambda.
lambda:AddPermission

//Required to add lambda to target group
elasticloadbalancing:RegisterTargets

//Delete lambda while deleting the load balancer
lambda:DeleteFunction

//Only required if user trigger delete load balancer from Harness UI
elasticloadbalancing:DeleteLoadBalancer

//Get the target group health check details during warm up and to populate health check details in UI while creating rule.
elasticloadbalancing:DescribeTargetHealth

//Get listeners of ALB
elasticloadbalancing:DescribeListeners

//Create new listener in ALB if doesn't exist
elasticloadbalancing:CreateListener

//Needed while creating new rule. We check existing rules and modify priority if required.
elasticloadbalancing:DescribeRules

//Create ALB rule
elasticloadbalancing:CreateRule

//Get tags of rules. ALB rules created by Harness will have Harness specific tags
elasticloadbalancing:DescribeTags

//Delete target groups
elasticloadbalancing:DeleteTargetGroup

//Delete ALB rule while editing/deleting Autostopping rules
elasticloadbalancing:DeleteRule

//Modify existing rules priorities to make sure the ALB rules created by Harness get more priority
elasticloadbalancing:SetRulePriorities

//Modify target group
elasticloadbalancing:ModifyTargetGroup

//Modify ALB rule
elasticloadbalancing:ModifyRule

//Traffic detection read cloud watch metrics to check the usage on a target group.
cloudwatch:GetMetricStatistics

//Need only if custom exclusion is used. This is to read the access log from S3
s3:ListBucket
s3:GetObject
s3:ListAllMyBuckets
s3:GetBucketLocation

//Need only if custom exclusion is used.Needed to get the access logs details from ALB.
elasticloadbalancing:DescribeLoadBalancerAttributes

//Permission assigned to the Lambda. This is to push the logs while running the lambda.
logs:CreateLogGroup
logs:CreateLogStream
logs:PutLogEvents

RDS Databases

Schedules only

//List RDS instances
rds:DescribeDBInstances

//List RDS clusters
rds:DescribeDBClusters

//List tags associated with RDS
rds:ListTagsForResource

//Start RDS Instance
rds:StartDBInstance

//Start RDS Cluster
rds:StartDBCluster

//Stop RDS Instance
rds:StopDBInstance

//Stop RDS Cluster
rds:StopDBCluster

with AutoStopping Proxy

//List machine types available for Proxy
ec2:DescribeInstanceTypeOfferings

//List key pairs for Proxy
ec2:DescribeKeyPairs

//Create Proxy VM
ec2:RunInstances

//Permission to read TLS certificate and secret. Needed only if TLS is used.
secretsmanager:GetSecretValue

//Allocate static IP
ec2:AllocateAddress

//List VPCs in create proxy flow
ec2:DescribeVpcs

//List security groups in create proxy flow
ec2:DescribeSecurityGroups

//List subnets for the selected VPC while creating ALB.
ec2:DescribeSubnets

//Delete the Proxy VM while deleting proxy

//Scope of this permission can be reduced to only proxy VMs.
ec2:TerminateInstances

//Describe the image for proxy
ec2:DescribeImages

//Associating address with VM
ec2:AssociateAddress

//Disassociate address while deleting proxy
ec2:DisassociateAddress

//Release address while deleting proxy
ec2:ReleaseAddress

//Modify security group of proxy VM if needed
ec2:ModifyInstanceAttribute

ECS Instances

Schedules only

//List ECS clusters
ecs:ListClusters

//List tags for selecting ECS service by tag
tag:GetResources

//List ECS services
ecs:ListServices

//List tasks for ECS service
ecs:ListTasks

//Describe ECS services
ecs:DescribeServices

//Needed set the desired task count while warming and cooling down
ecs:UpdateService

//Describe ECS Task
ecs:DescribeTaskDefinition

//Describe ECS Tasks
ecs:DescribeTasks

with AWS ALB

//Describe certificates in create ALB flow
acm:ListCertificates

//List VPCs in create ALB flow
ec2:DescribeVpcs

//List security groups in create ALB flow
ec2:DescribeSecurityGroups

//Describe load balancers in create ALB flow
elasticloadbalancing:DescribeLoadBalancers

//Lambda requires a role to execute and push the logs to cloud watch. We have a separate role for that. iam:ListRoles is used in code to list roles and identify the role created for lambda.
iam:ListRoles

//List subnets for the selected VPC while creating ALB.
ec2:DescribeSubnets

//Create ALB. Needed only if customer wants to create ALB from Harness
elasticloadbalancing:CreateLoadBalancer

//Attach security groups to ALB. Needed only if customer wants to create ALB from Harness.
elasticloadbalancing:SetSecurityGroups

//Describe target group. This is used to get details of lambda target group and EC2 target group
elasticloadbalancing:DescribeTargetGroups

//Create lambda target group and health check target group
elasticloadbalancing:CreateTargetGroup

//Add tags to Harness created target groups
elasticloadbalancing:AddTags

//Get lambda function details
lambda:GetFunction

//Create lambda function
lambda:CreateFunction

//We specify the lambda role when we try to create lambda. Create lambda with role in request will succeed only if this permission is present
iam:PassRole

//This is needed to allow the lambda Target Group to execute the lambda.
lambda:AddPermission

//Required to add lambda to target group
elasticloadbalancing:RegisterTargets

//Delete lambda while deleting the load balancer
lambda:DeleteFunction

//Only required if user trigger delete load balancer from Harness UI
elasticloadbalancing:DeleteLoadBalancer

//Get the target group health check details during warm up and to populate health check details in UI while creating rule.
elasticloadbalancing:DescribeTargetHealth

//Get listeners of ALB
elasticloadbalancing:DescribeListeners

//Create new listener in ALB if doesn't exist
elasticloadbalancing:CreateListener

//Needed while creating new rule. We check existing rules and modify priority if required.
elasticloadbalancing:DescribeRules

//Create ALB rule
elasticloadbalancing:CreateRule

//Get tags of rules. ALB rules created by Harness will have Harness specific tags
elasticloadbalancing:DescribeTags

//Delete target groups
elasticloadbalancing:DeleteTargetGroup

//Delete ALB rule while editing/deleting Autostopping rules
elasticloadbalancing:DeleteRule

//Modify existing rules priorities to make sure the ALB rules created by Harness get more priority
elasticloadbalancing:SetRulePriorities

//Modify target group
elasticloadbalancing:ModifyTargetGroup

//Modify ALB rule
elasticloadbalancing:ModifyRule

//Traffic detection read cloud watch metrics to check the usage on a target group.
cloudwatch:GetMetricStatistics

//Need only if custom exclusion is used. This is to read the access log from S3
s3:ListBucket
s3:GetObject
s3:ListAllMyBuckets
s3:GetBucketLocation

//Need only if custom exclusion is used.Needed to get the access logs details from ALB.
elasticloadbalancing:DescribeLoadBalancerAttributes

//Permission assigned to the Lambda. This is to push the logs while running the lambda.
logs:CreateLogGroup
logs:CreateLogStream
logs:PutLogEvents

5. Cloud Asset Governance Permissions

The Cloud Asset Governance feature allows you to optimize your cloud spend and avoid unnecessary costs by rightsizing resources and decommissioning unused instances. This feature provides asset management for EC2, EBS, RDS, S3 resources and enables automated actions.

Required Permissions

Enable the following permissions in AWS to execute cloud governance rules:

Click to view Cloud Asset Governance Policy

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Action": [
                "ec2:Describe*",
                "ec2:DeleteSnapshot",
                "ec2:DeleteVolume",
                "ec2:Get*",
                "ec2:ListImagesInRecycleBin",
                "ec2:ListSnapshotsInRecycleBin",
                "elasticbeanstalk:Check*",
                "elasticbeanstalk:Describe*",
                "elasticbeanstalk:List*",
                "elasticbeanstalk:Request*",
                "elasticbeanstalk:Retrieve*",
                "elasticbeanstalk:Validate*",
                "elasticloadbalancing:Describe*",
                "rds:Describe*",
                "rds:List*",
                "autoscaling-plans:Describe*",
                "autoscaling-plans:GetScalingPlanResourceForecastData",
                "autoscaling:Describe*",
                "autoscaling:GetPredictiveScalingForecast",
                "s3:DescribeJob",
                "s3:Get*",
                "s3:List*"
            ],
            "Resource": "*",
            "Effect": "Allow"
        }
    ]
}

info

This is not an exhaustive list; you may require additional permissions to support custom rules.
A yellow underline in a custom policy indicates that you need permission to support the underlined filters and/or actions.

6. Commitment Orchestrator Permissions

Step 1: Visibility

To enable visibility, in the master account connector, you need to add the following permissions.

"ec2:DescribeReservedInstancesOfferings",
"ce:GetSavingsPlansUtilization",
"ce:GetReservationUtilization",
"ec2:DescribeInstanceTypeOfferings",
"ce:GetDimensionValues",
"ce:GetSavingsPlansUtilizationDetails",
"ec2:DescribeReservedInstances",
"ce:GetReservationCoverage",
"ce:GetSavingsPlansCoverage",
"savingsplans:DescribeSavingsPlans",
"organizations:DescribeOrganization"
"ce:GetCostAndUsage"

Step 2: Setup flow (to enable actual orchestration)

"ec2:PurchaseReservedInstancesOffering",
"ec2:GetReservedInstancesExchangeQuote",
"ec2:DescribeInstanceTypeOfferings",
"ec2:AcceptReservedInstancesExchangeQuote",
"ec2:DescribeReservedInstancesModifications",
"ec2:ModifyReservedInstances"
"ce:GetCostAndUsage"
savingsplans:DescribeSavingsPlansOfferings
savingsplans:CreateSavingsPlan

Troubleshooting

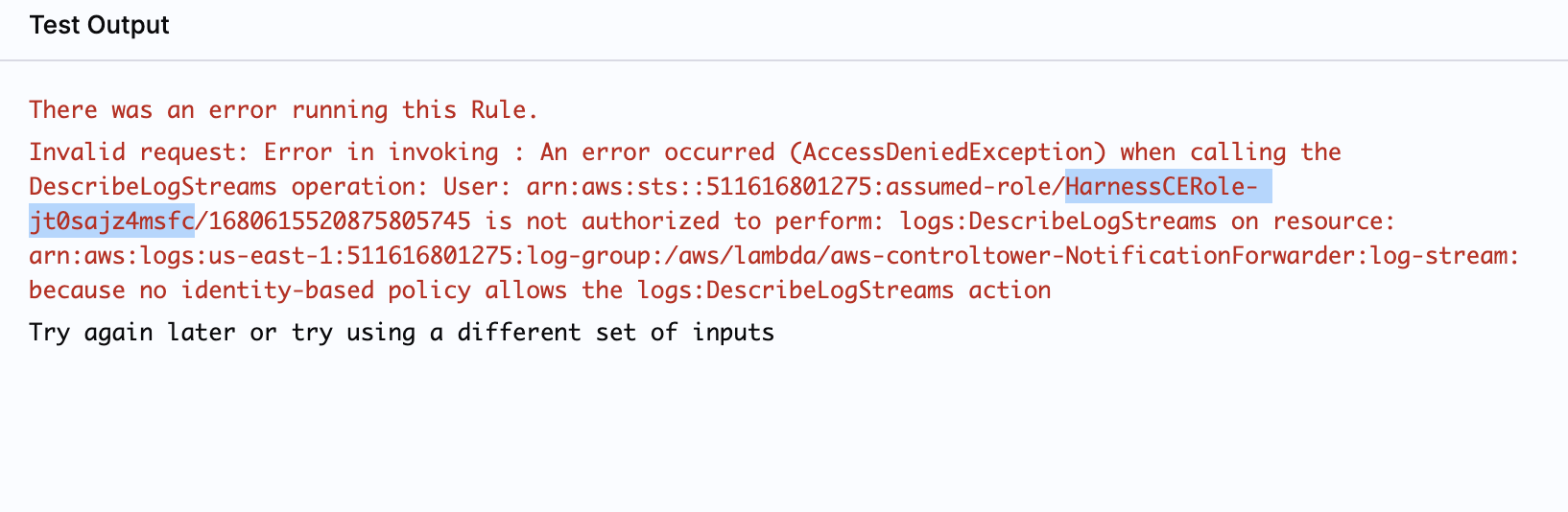

If you come across an error message indicating missing permissions, as displayed in the following screenshot, you need to add the missing permission here.

Copy the role specified in the error message that requires permission to execute the rule.
Enter the role in IAM > Roles search box to filter the roles. The policies are displayed.

In the list of policies, select the policy to edit.
In the Permissions tab, select Edit policy, and then go to the JSON tab.
Add the missing permissions. You can use a wildcard (asterisk) to grant multiple permissions. For example, s3:Get* permission would allow multiple S3 actions that start with "Get".
Save changes.

For more information, go to Editing IAM policies.

info

If you are using permission boundaries to enforce restrictions, ensure that Harness permissions are explicitly allowed to enable the connectors and functionalities to operate correctly.

Overview​

Prerequisites​

AWS Connector requirements​

Required- Cost and Usage Reports (CUR)​

Implementation Guide​

Connect CCM to your AWS account​

Step 1: Configure Connector Overview​

Connector Details​

Step 2: Set Up Cost and Usage Report​

Report Details​

Step 3: Choose Requirements​

Step 4: Create Cross Account Role​

Step 5: Connection Test​

Advanced Configuration​

Create Connectors for multiple AWS accounts​

Create a Service Account and API key in Harness​

Create a StackSet in AWS​

Create an AWS Connector via API​

Enable EC2 recommendations​

Reference Information​

AWS access permissions​

Individual Feature Permissions​

1. Cost Visibility Permissions​

Required Permissions​

2. Resource Inventory Management Permissions​

Required Permissions​

3. RDS Instance Visibility Permissions​

Feature Capabilities​

Dashboard Access​

4. AutoStopping Rules Permissions​

Feature Capabilities​

Required Permissions​

Granular Permissions for AutoStopping​

EC2 Instances​

Auto Scaling Groups​

RDS Databases​

ECS Instances​

5. Cloud Asset Governance Permissions​

Required Permissions​

6. Commitment Orchestrator Permissions​

Troubleshooting​

Overview

Prerequisites

AWS Connector requirements

Required- Cost and Usage Reports (CUR)

Implementation Guide

Connect CCM to your AWS account

Step 1: Configure Connector Overview

Connector Details

Step 2: Set Up Cost and Usage Report

Report Details

Step 3: Choose Requirements

Step 4: Create Cross Account Role

Step 5: Connection Test

Advanced Configuration

Create Connectors for multiple AWS accounts

Create a Service Account and API key in Harness

Create a StackSet in AWS

Create an AWS Connector via API

Enable EC2 recommendations

Reference Information

AWS access permissions

Individual Feature Permissions

1. Cost Visibility Permissions

Required Permissions

2. Resource Inventory Management Permissions

Required Permissions

3. RDS Instance Visibility Permissions

Feature Capabilities

Dashboard Access

4. AutoStopping Rules Permissions

Feature Capabilities

Required Permissions

Granular Permissions for AutoStopping

EC2 Instances

Auto Scaling Groups

RDS Databases

ECS Instances

5. Cloud Asset Governance Permissions

Required Permissions

6. Commitment Orchestrator Permissions

Troubleshooting
